Product Introduction
EGR Decor RV Lightweight Plywood Panels
EGR Decor RV Lightweight panels create luxury cabinets, vanities or custom furniture when weight is a consideration.

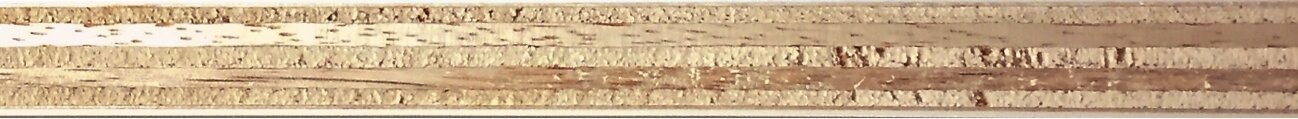

These finishes offer a smooth flawless surface with unsurpassed depth of colour or natural timber grains. Uses high quality MR lightweight plywood. Ideal for interior fit out for caravans and RVs – from furniture and kitchen cabinetry, to vanity doors and panels.
Available in three finishes – TruGloss, TruMatte & Woodgrain.

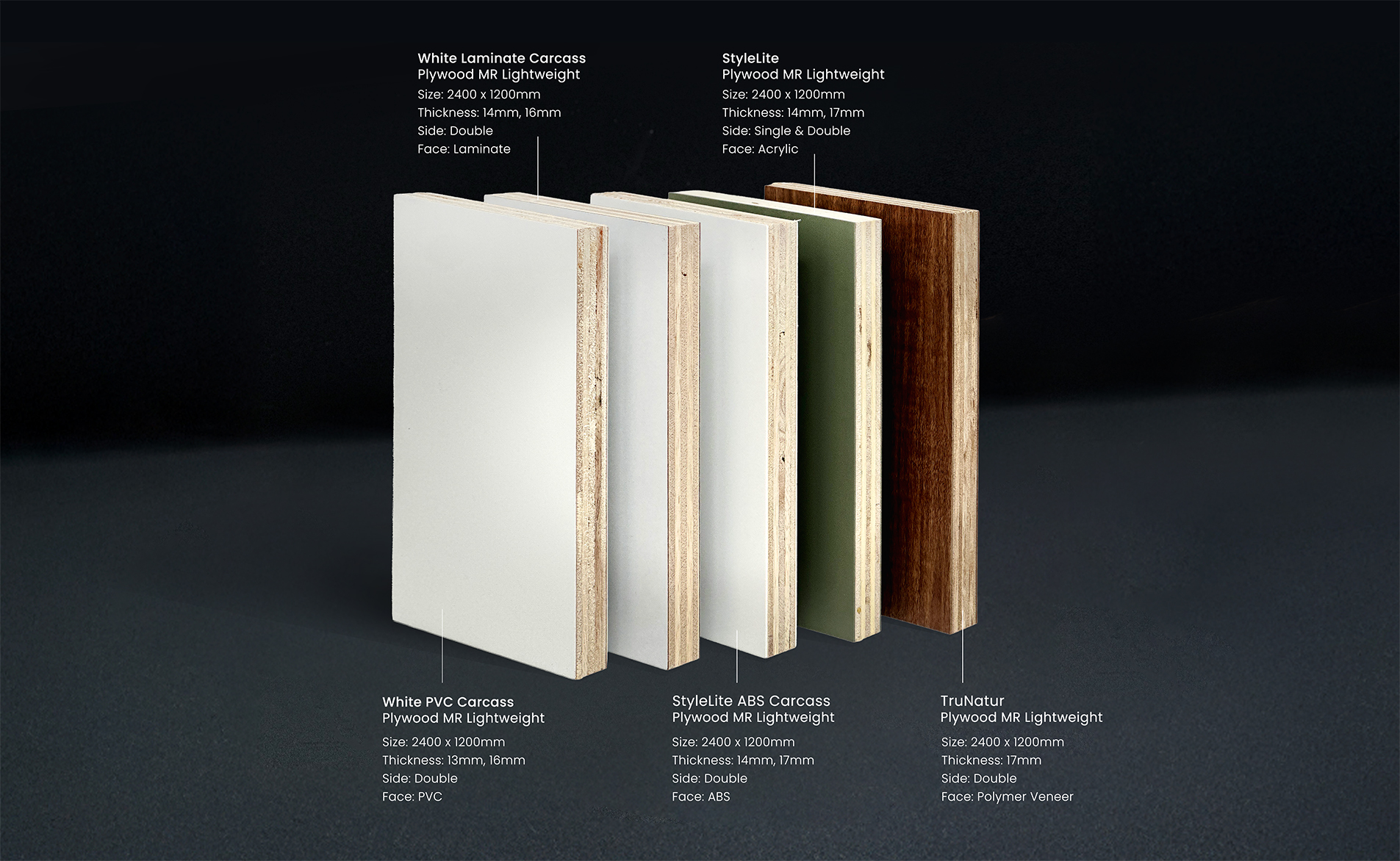

EGR Decor RV Lightweight Plywood Carcass Panels
EGR Decor lightweight plywood carcass range has been developed to provide the optimum balance of light weight, high strength and long term durability for many applications in Caravan and Motorhome fit outs.
RV Carcass is available in 3 different surface finishes and 2 thicknesses.
- PVC is economical & the lightest weight.
- Laminate is highly durable & the most rigid.
- ABS is a premium appearance combined with ease of fabrication & rigidity.
Features:
- Lightweight and high strength
- Easy to clean textured surface
- High moisture resistant structure
Product Details
| Size | Thickness | Side | Face | Weight | Finished | Applications |
|---|---|---|---|---|---|---|
| 23mm x 50m | 1mm | - | ABS Capped | - | Matched Colour | Finishing and protecting exposed panel edges in cabinetry and doors |
| 23mm x 100m |
| Size | Thickness | Side | Face | Weight | Finished | Applications |
|---|---|---|---|---|---|---|
| 2400 x 1200mm | 13mm | Double | PVC | 6kg/m² | Textured Matte | Cabinet carcass, support base frames, kickboards, drawer panels |
| 16mm | Double | PVC | 7.5kg/m² | |||
| 16mm | Double | Laminate | 7.5kg/m² |
| Size | Thickness | Side | Face | Weight | Finished | Applications |
|---|---|---|---|---|---|---|
| 2400 x 1200mm | 14mm | Double | ABS | 6.5kg/m² | Textured Matte | Cabinet carcass, support base frames, kickboards, drawer panels |
| 17mm | Double | ABS | 8kg/m² |
| Size | Thickness | Side | Face | Weight | Finished | Applications |
|---|---|---|---|---|---|---|
| 2400 x 1200mm | 14mm | Single | Acrylic / ABS | 6.5kg/m² | Ultra gloss & matte | Cabinet doors, face panels, and drawer fronts |
| 14mm | Double | Acrylic | 6.5kg/m² | |||
| 17mm | Single | Acrylic / ABS | 8kg/m² | |||
| 17mm | Double | Acrylic | 8kg/m² |
| Size | Thickness | Side | Face | Weight | Finished | Applications |
|---|---|---|---|---|---|---|
| 2400 x 1200mm | 17mm | Double | Polymer Veneer | 8kg/m² | Natural woodgrain | Cabinet doors, drawer fronts, face panels, and floating shelves |
Caravan & RV Decors
Alabaster Backer
Solid TexturedAlabaster TruGloss
Solid GlossAlabaster TruMatte
Solid MatteArctic Backer
Solid TexturedArctic TruGloss
Solid GlossArctic TruMatte
Solid MatteAsh TruGloss
Solid GlossAsh TruMatte
Solid MatteCarbon TruGloss
Solid GlossCarbon TruMatte
Solid MatteCharcoal TruGloss
Solid GlossCharcoal TruMatte
Solid MatteCinnabar TruMatte
Solid MatteCottonseed TruMatte
Solid MatteDove TruGloss
Solid GlossDove TruMatte
Solid MatteJura TruMatte
Solid MatteMariana TruMatte
Solid MatteMocha TruGloss
Solid GlossMountain TruMatte
Solid MatteOceanic TruMatte
Solid MatteRainforest TruMatte
Solid MatteSand TruGloss
Solid GlossShade TruMatte
Solid MatteShell TruMatte
Solid MatteSlate TruGloss
Solid GlossSlate TruMatte
Solid MatteCharred Ash
Woodgrain TexturedCinder Oak
Woodgrain TexturedCinnamon Teak
Woodgrain TexturedClassic Walnut
Woodgrain TexturedCoastal Ash
Woodgrain TexturedCoastal Blackbutt
Woodgrain TexturedHazelnut Oak
Woodgrain TexturedMisty Oak
Woodgrain TexturedNatural Oak
Woodgrain TexturedRich Eucalypt
Woodgrain TexturedSpotted Gum
Woodgrain TexturedTropic Walnut
Woodgrain TexturedWeathered Oak
Woodgrain TexturedWinter Ash

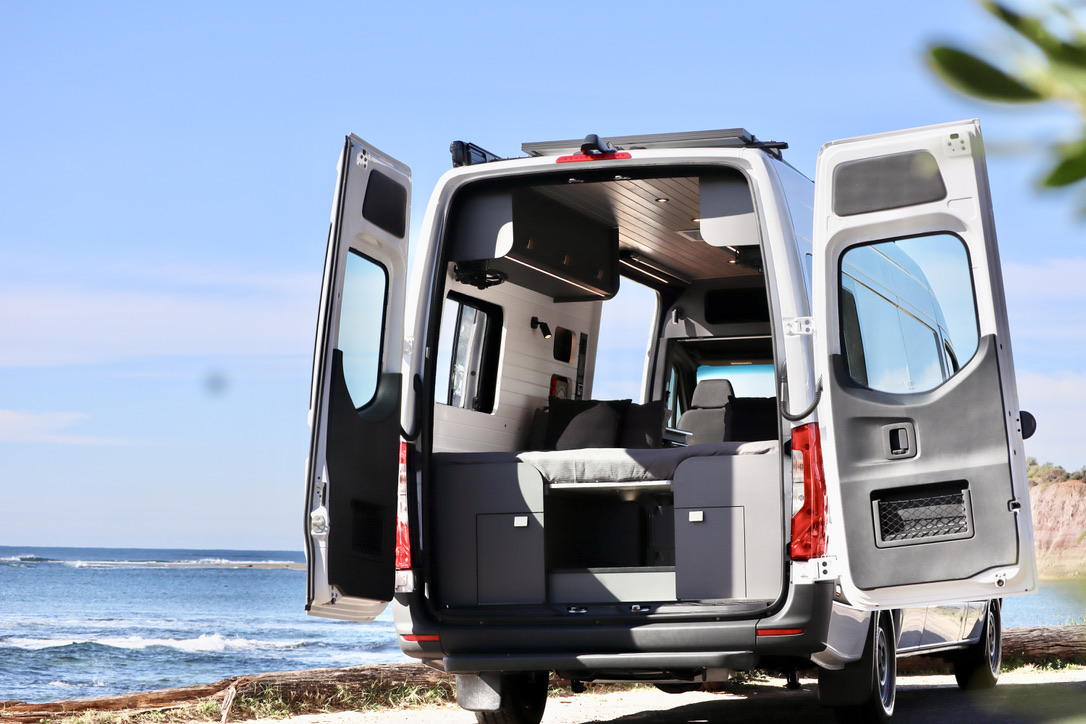

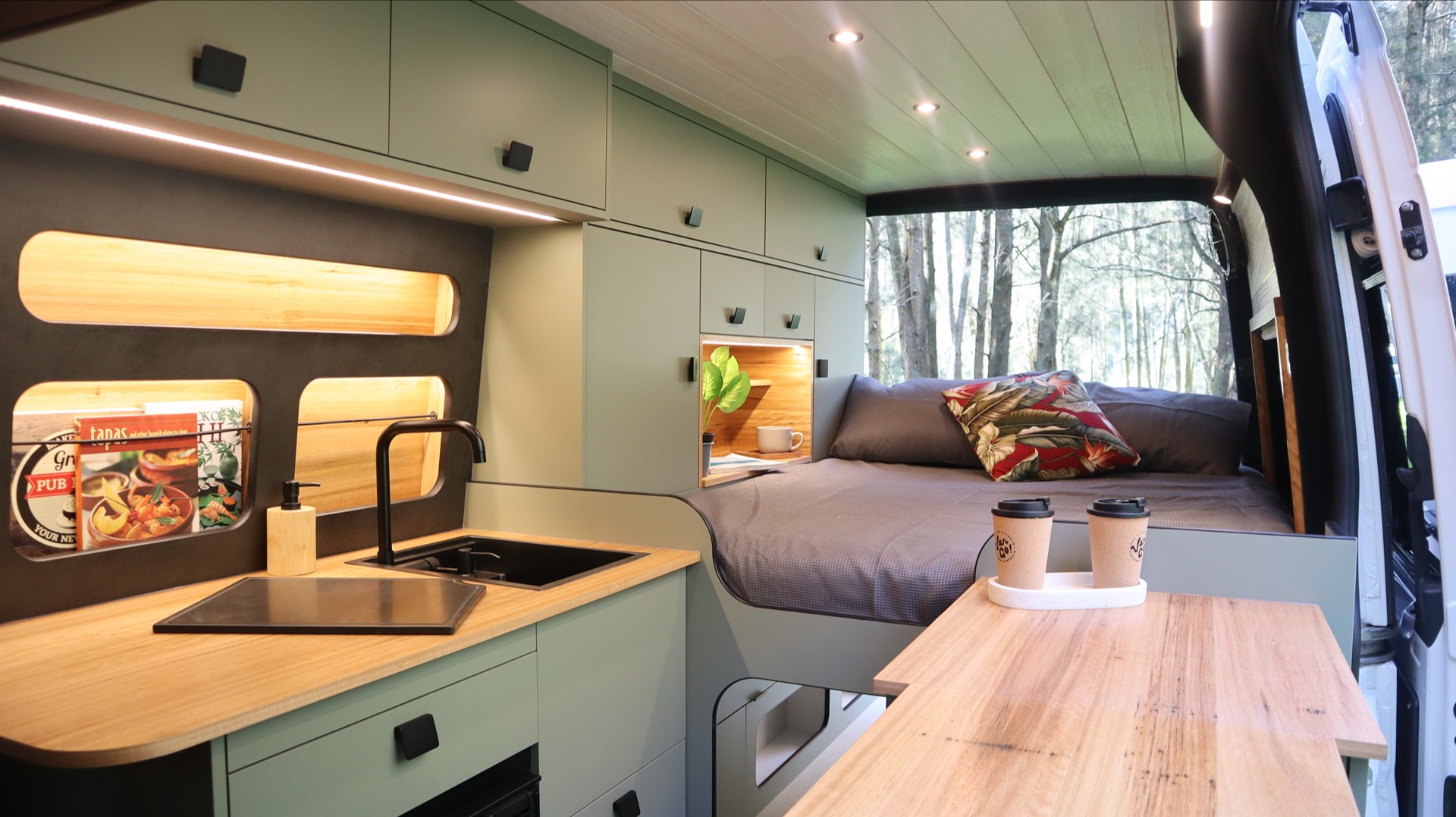

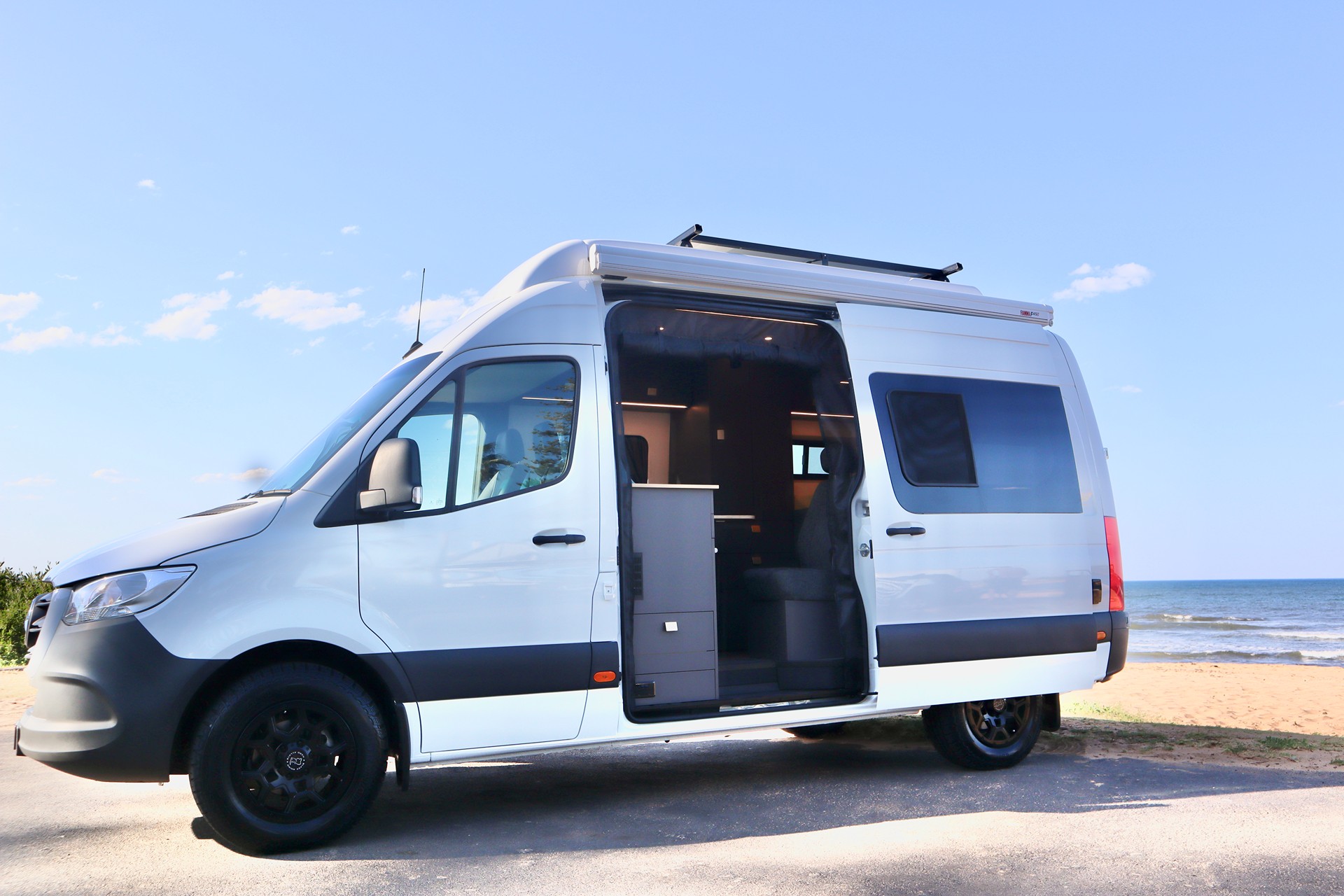

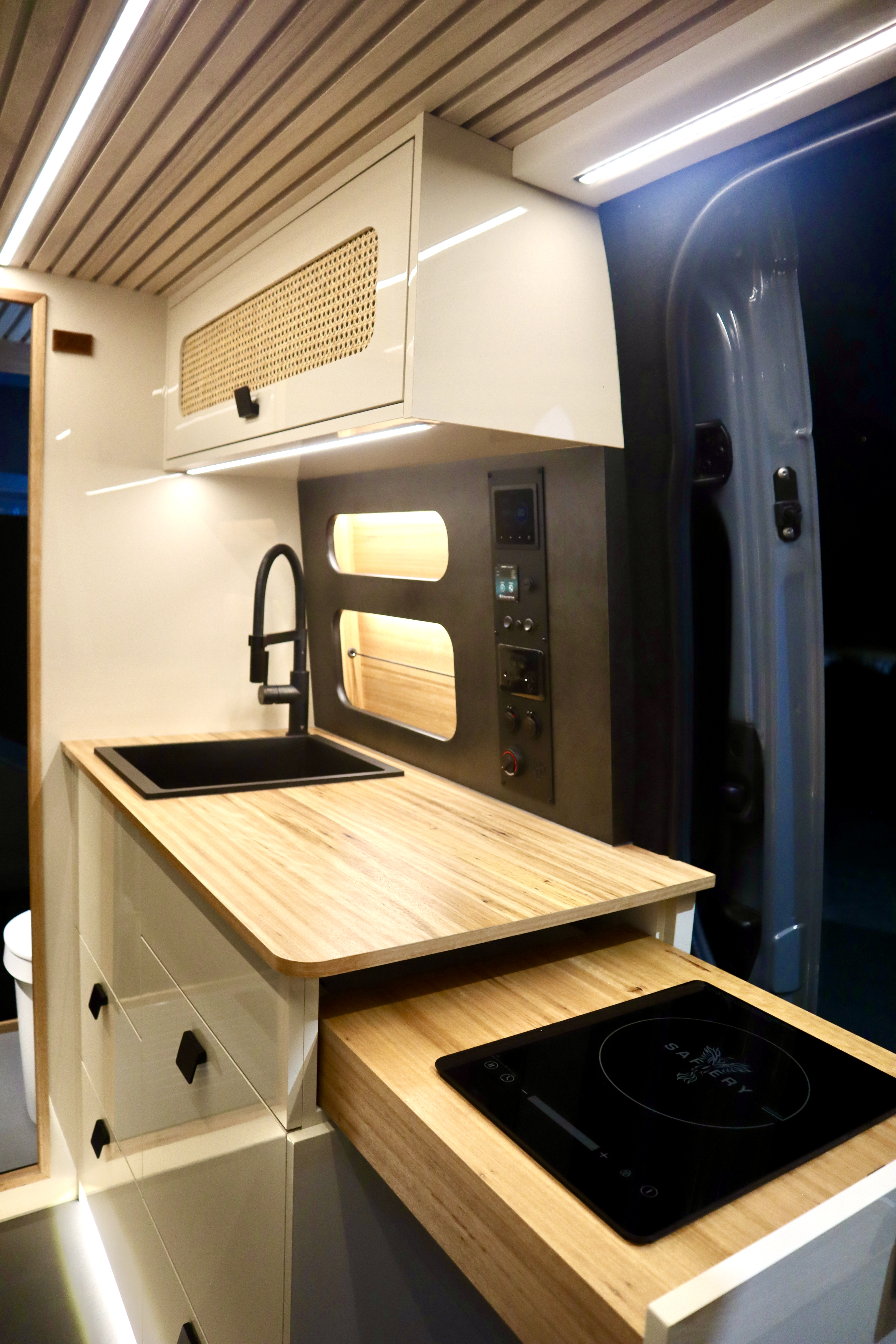

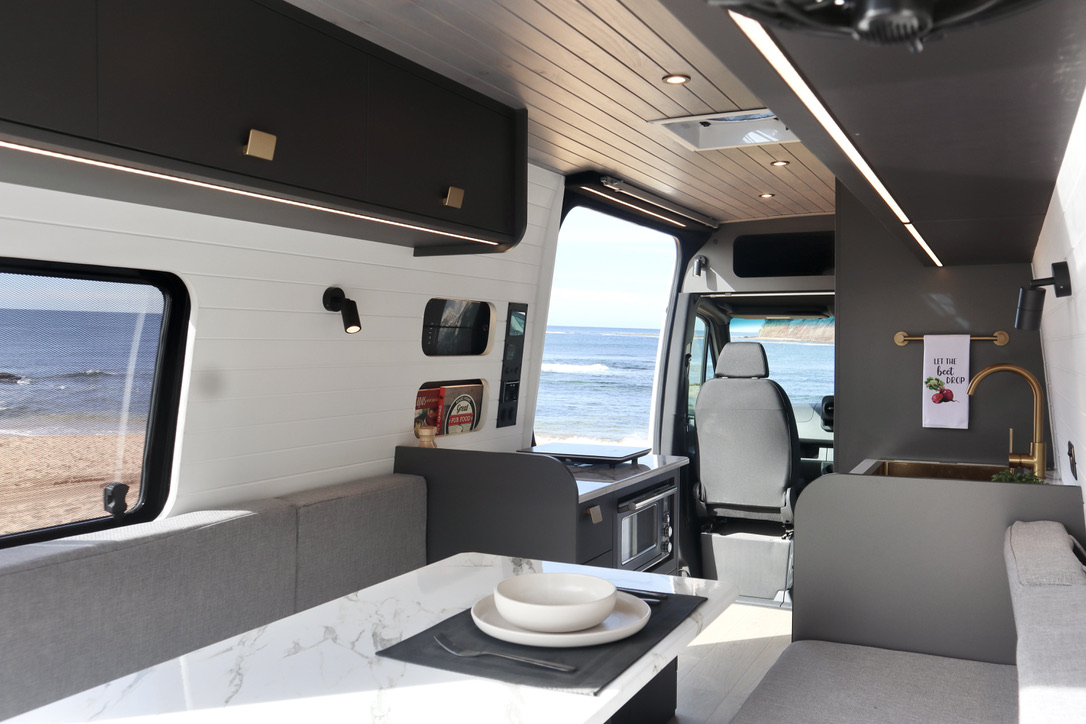

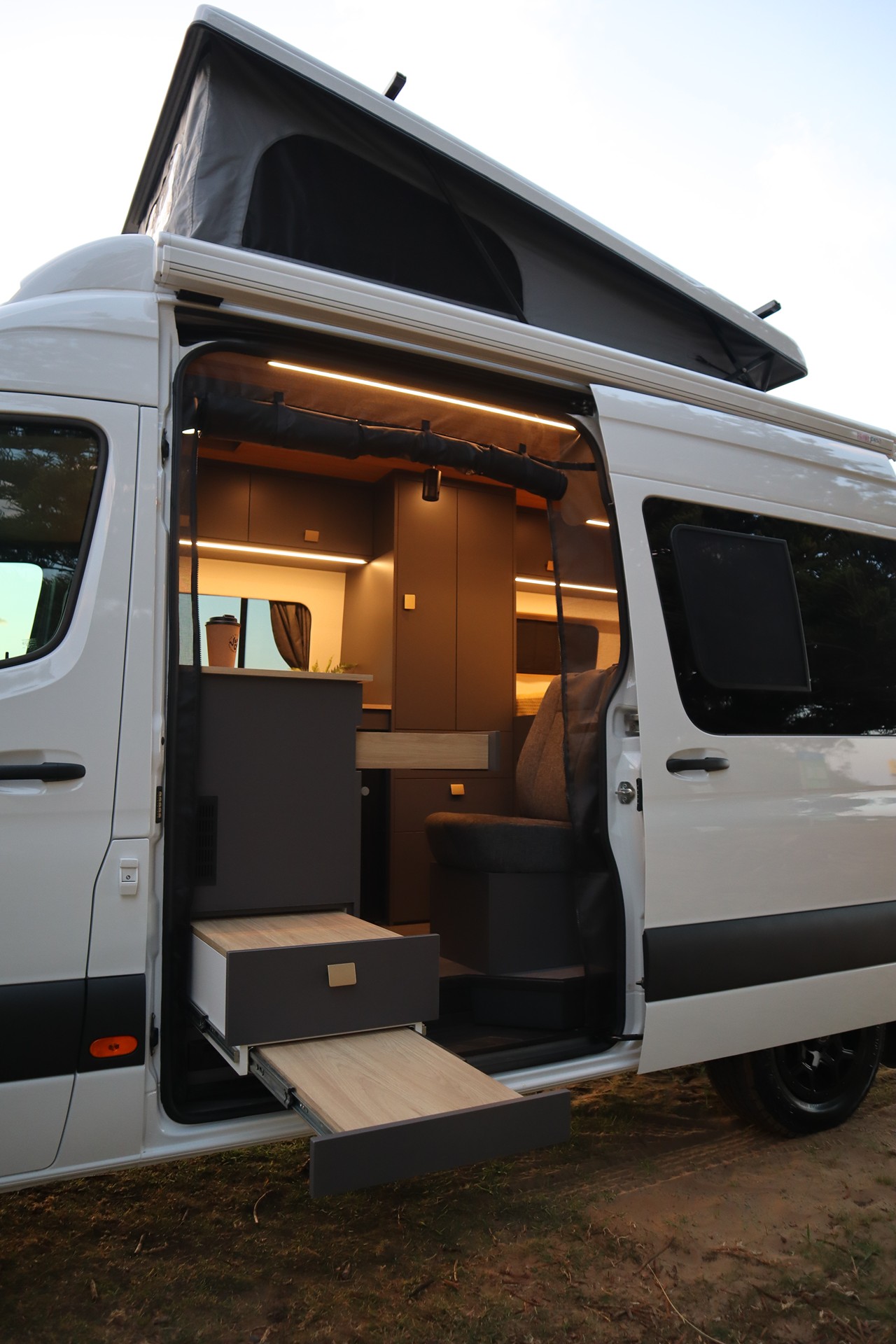

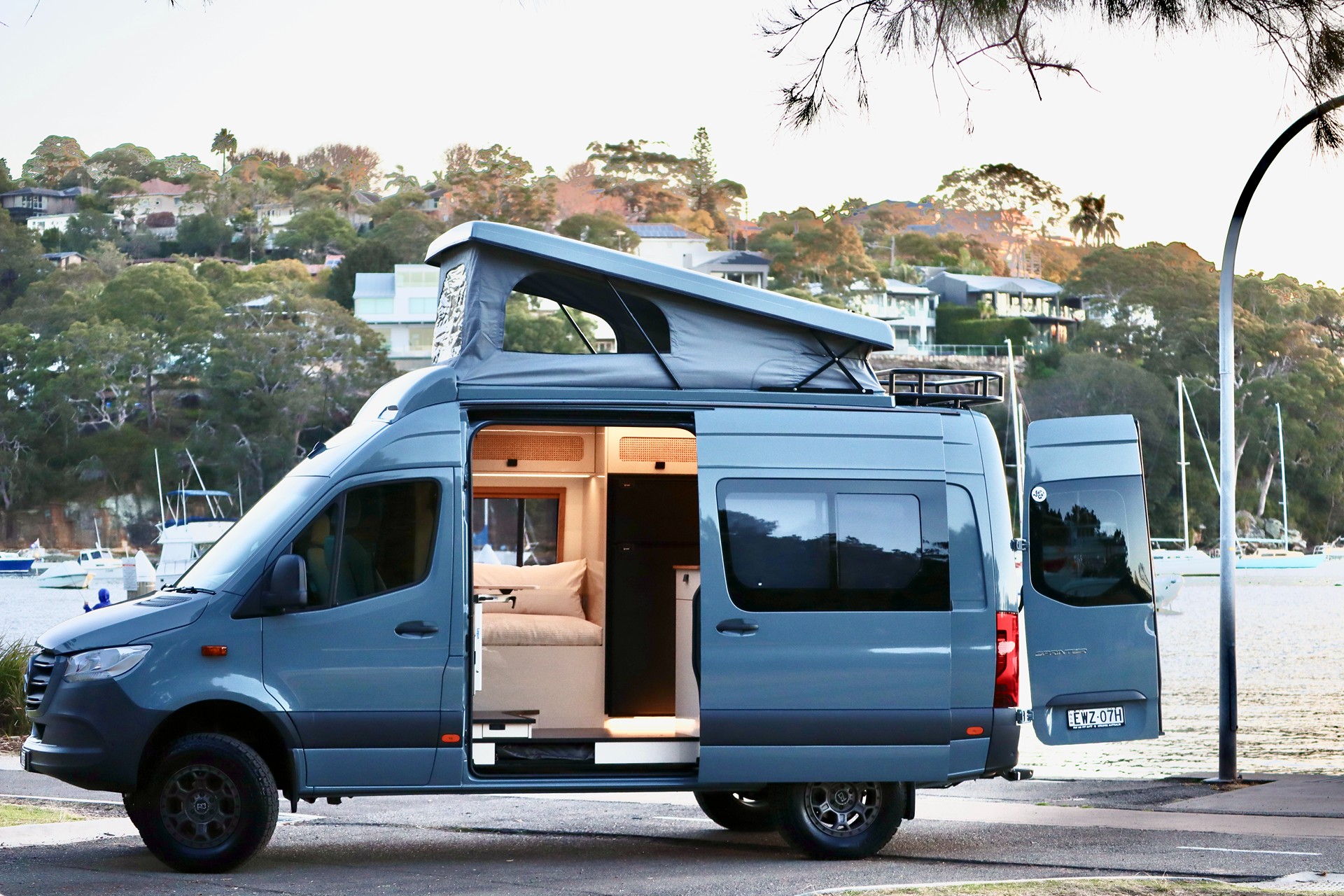

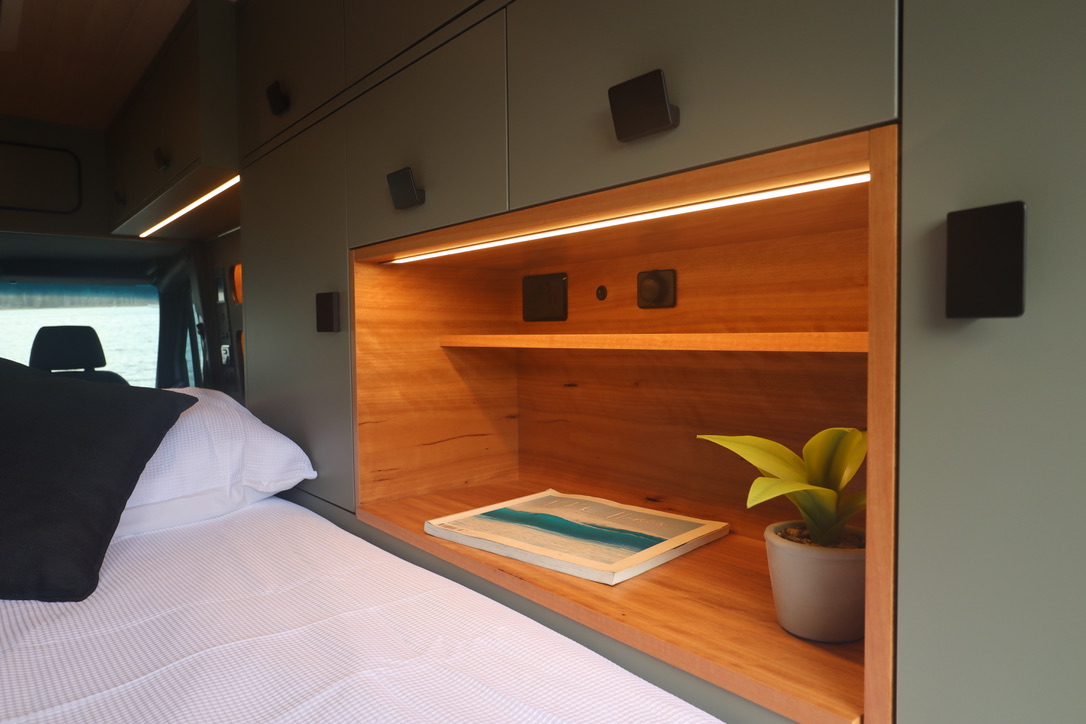

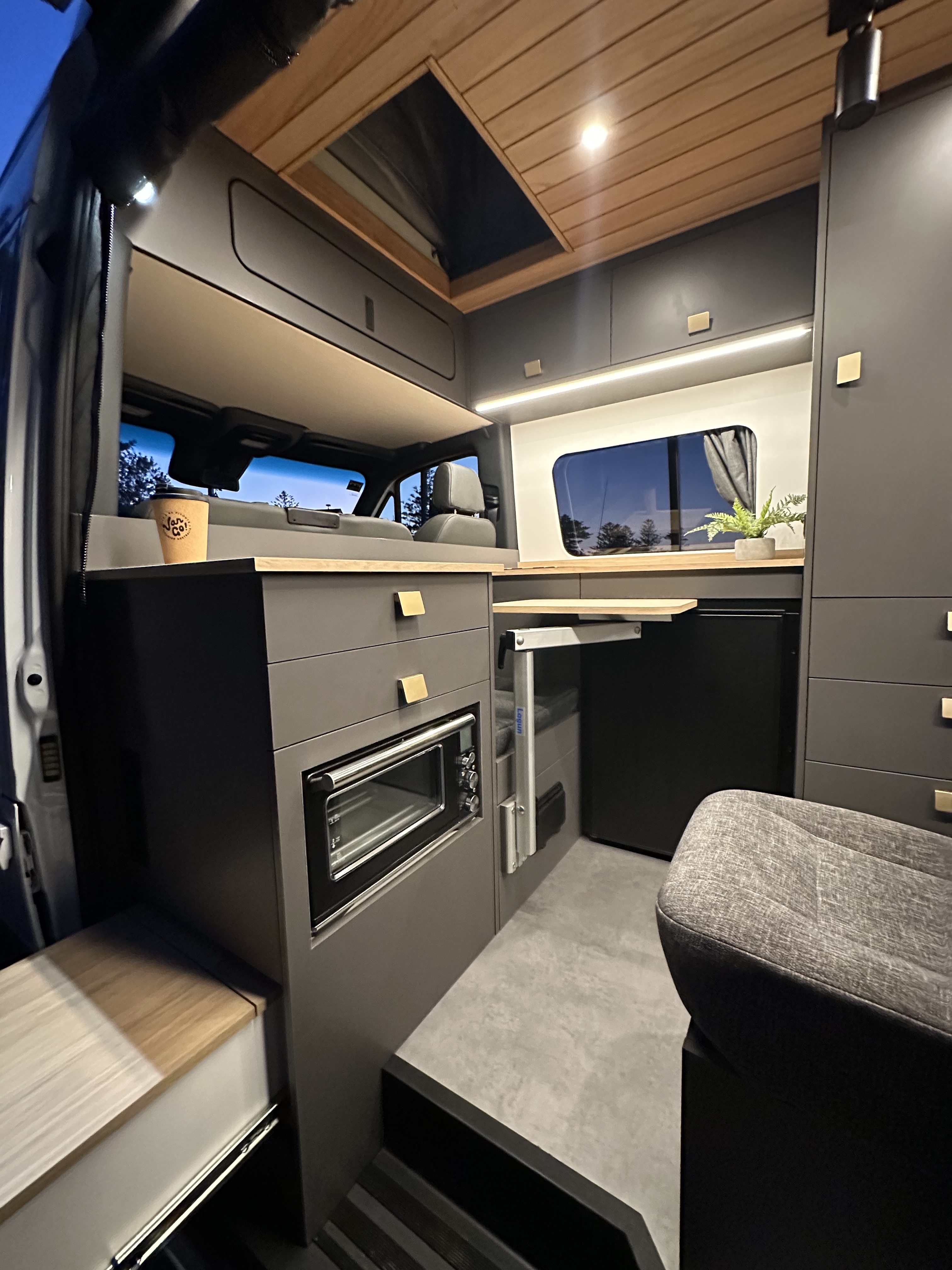

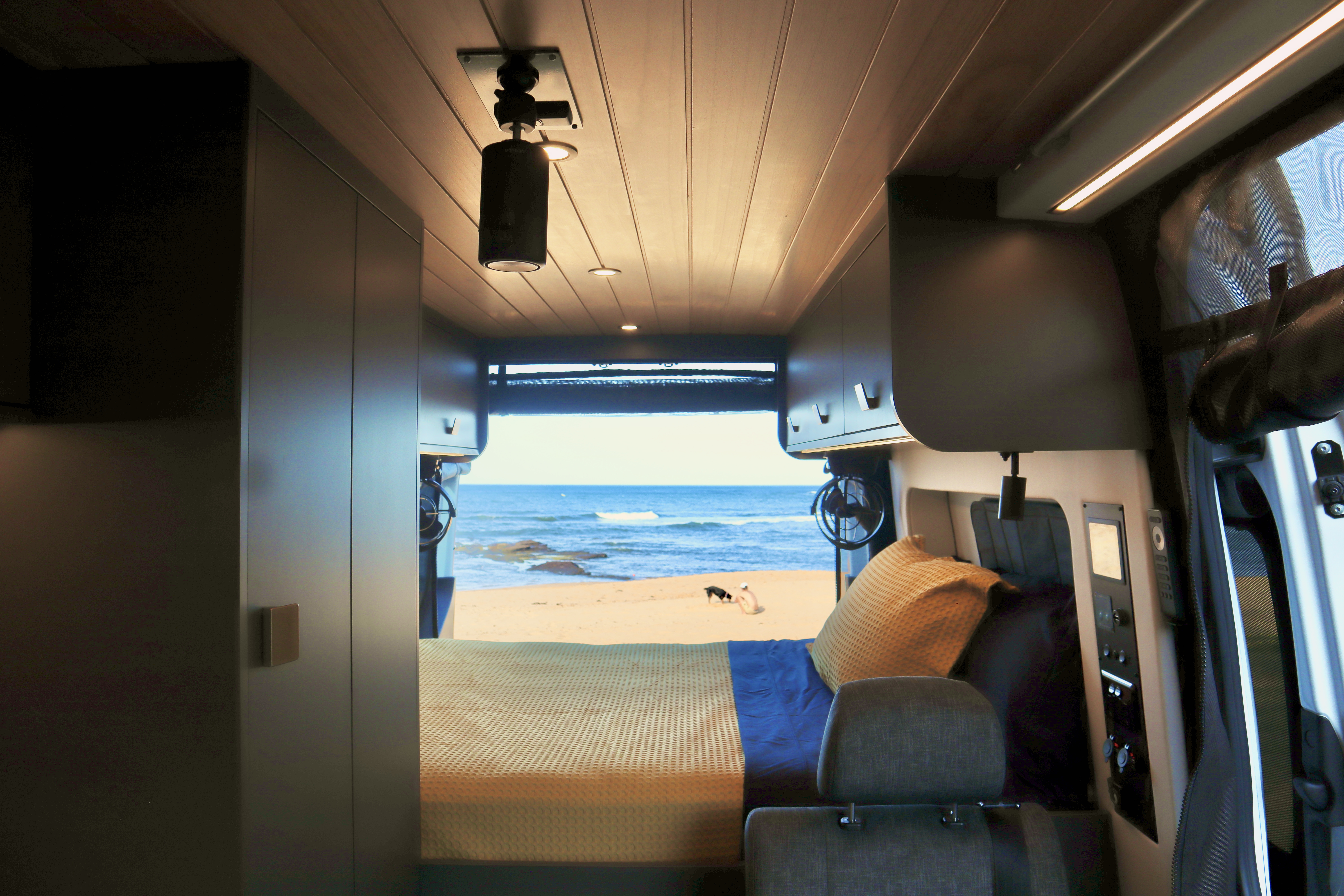

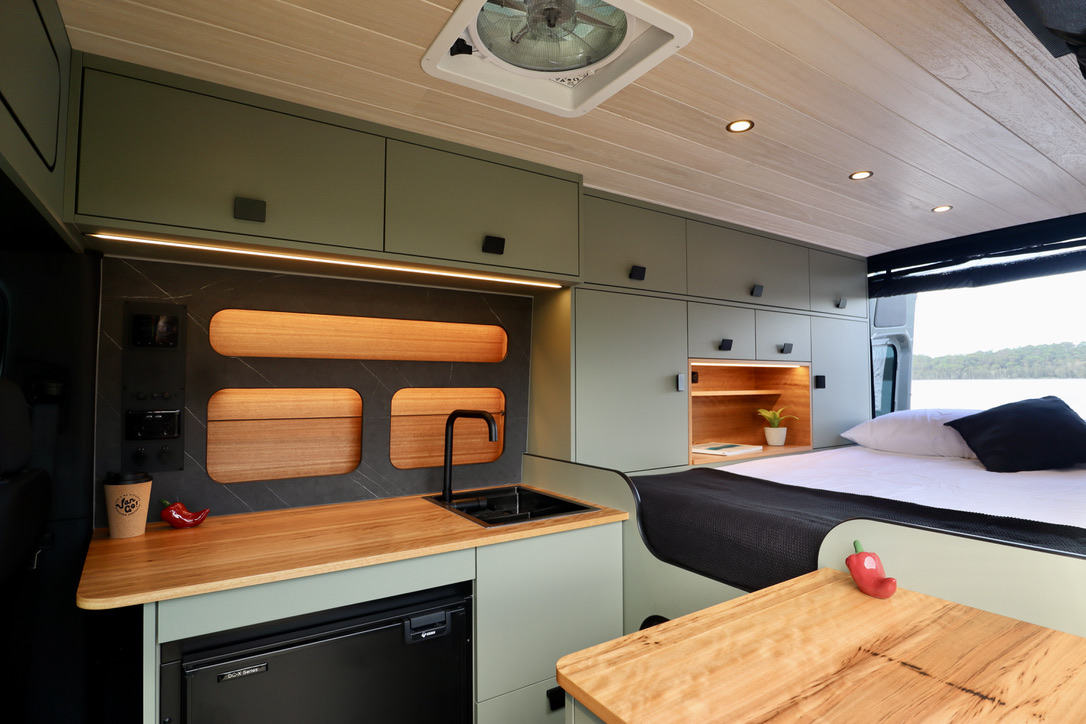

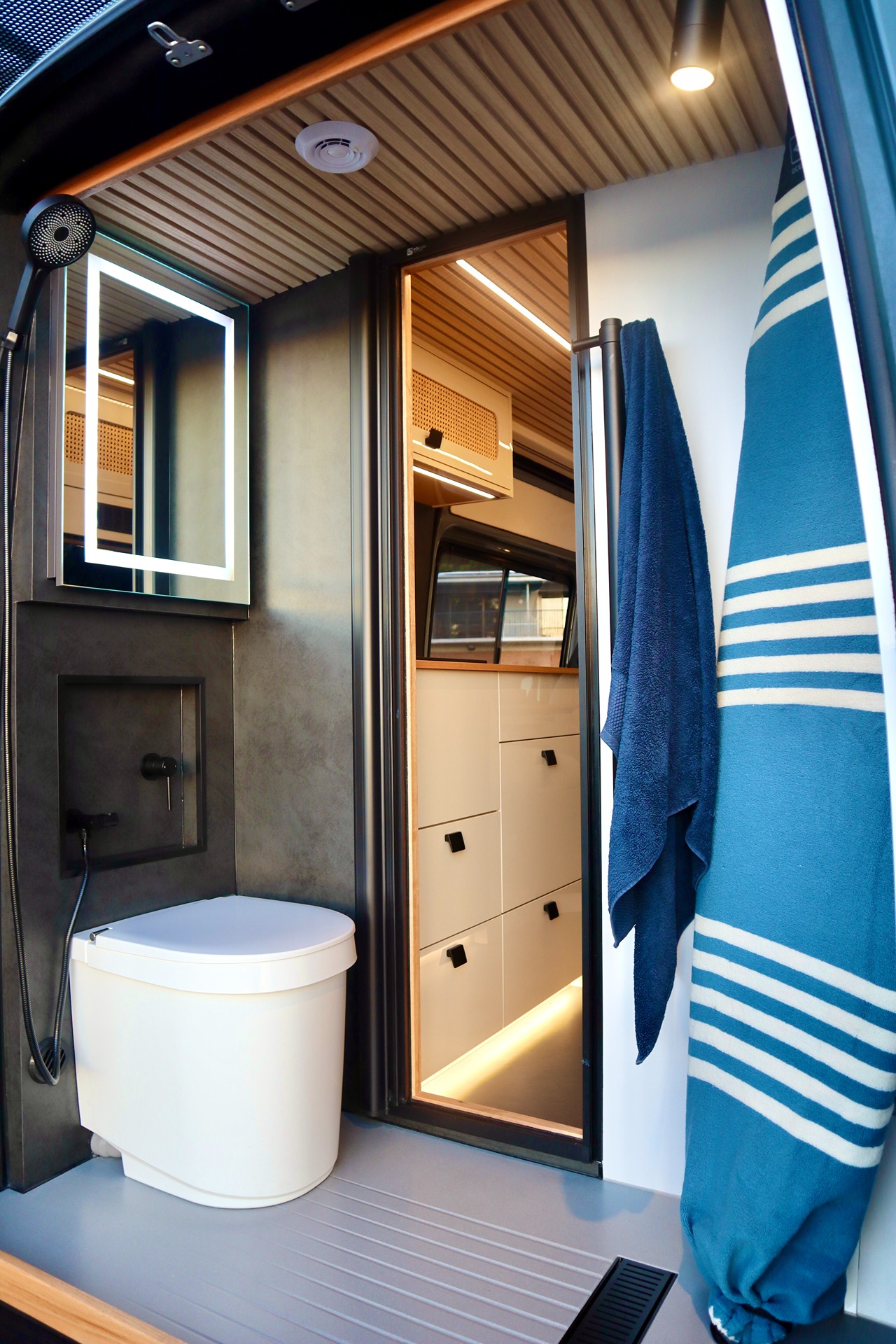

Woodgrain TexturedCaravans & RV's Gallery
